To be Certified in the National Marine Manufacturers Association you must meet all the guidelines set forth by the Society of Automotive Engineers (SAE) and the Code of Federal Regulations (CFR). This Includes safety inspectuions for Brakes, Winches, Lighting, Safety Chains, Couplers, ect.. Setting a Standard to make sure your equiptment will be reliable is at the forefront of our priorities.

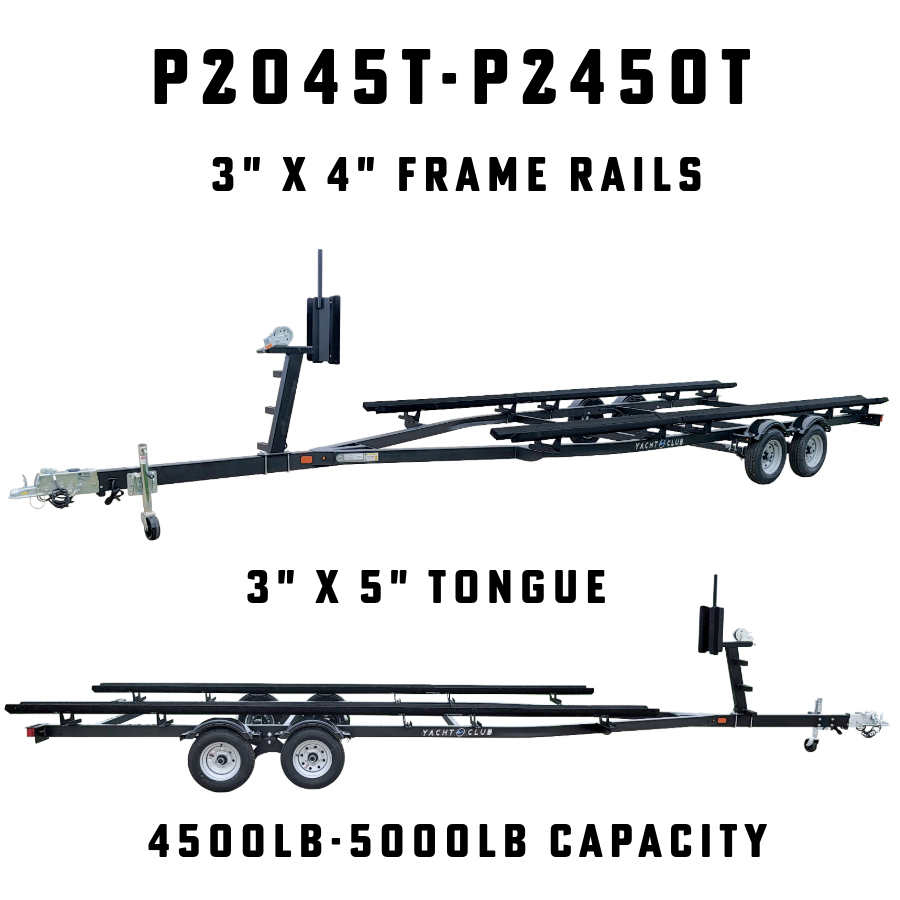

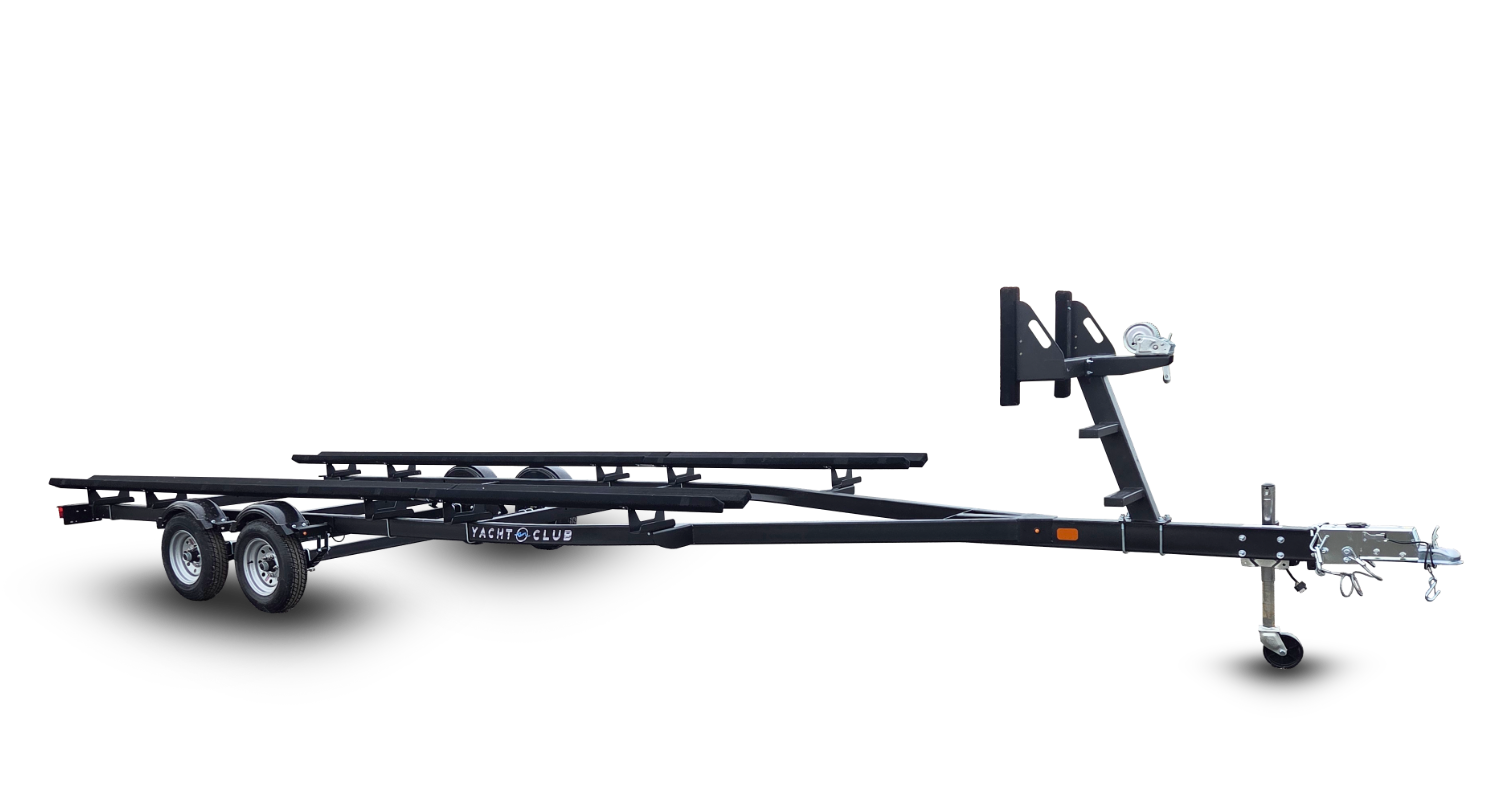

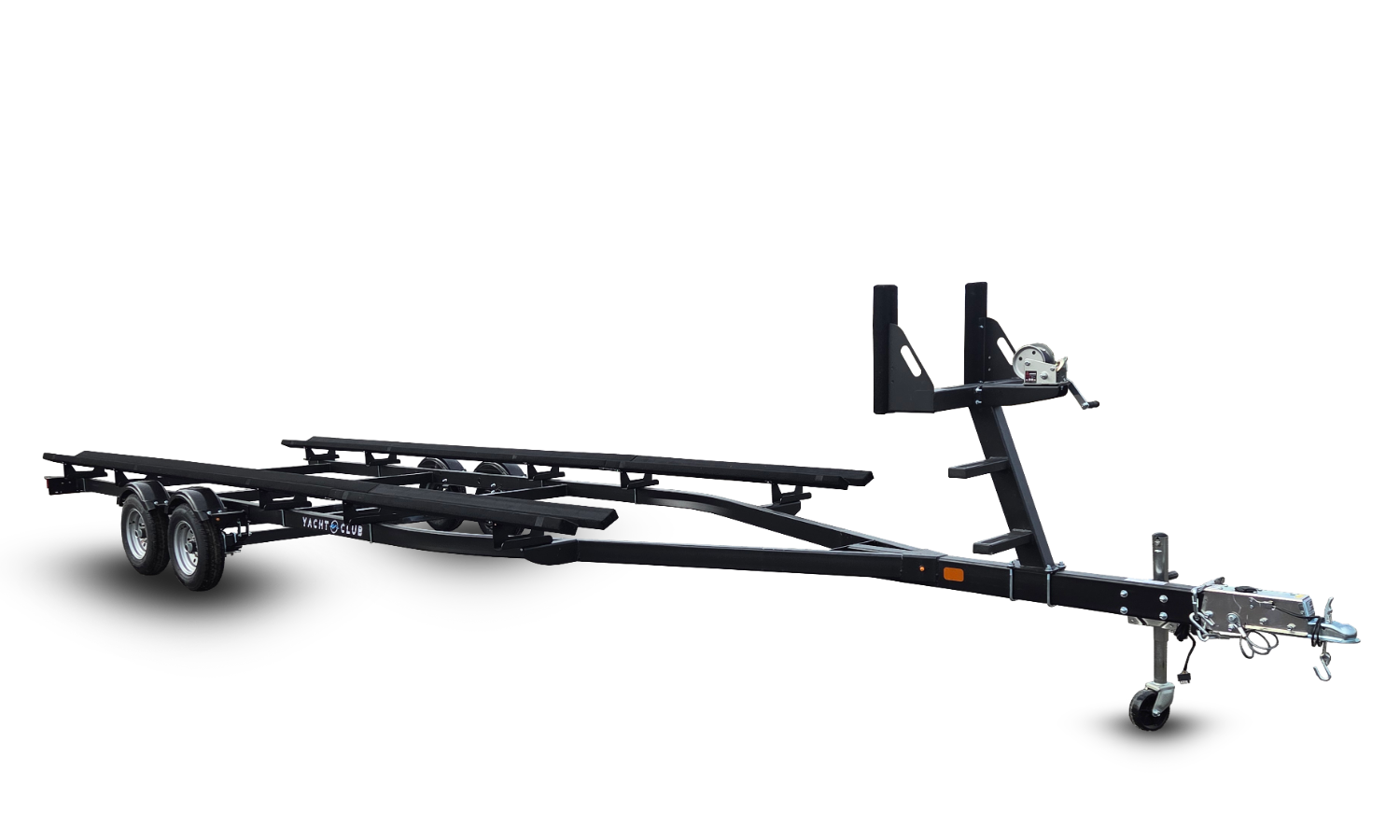

"P" SERIES PONTOON TRAILER
Models & Specs
| Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size | Pdf Download |
|---|---|---|---|---|---|---|---|---|

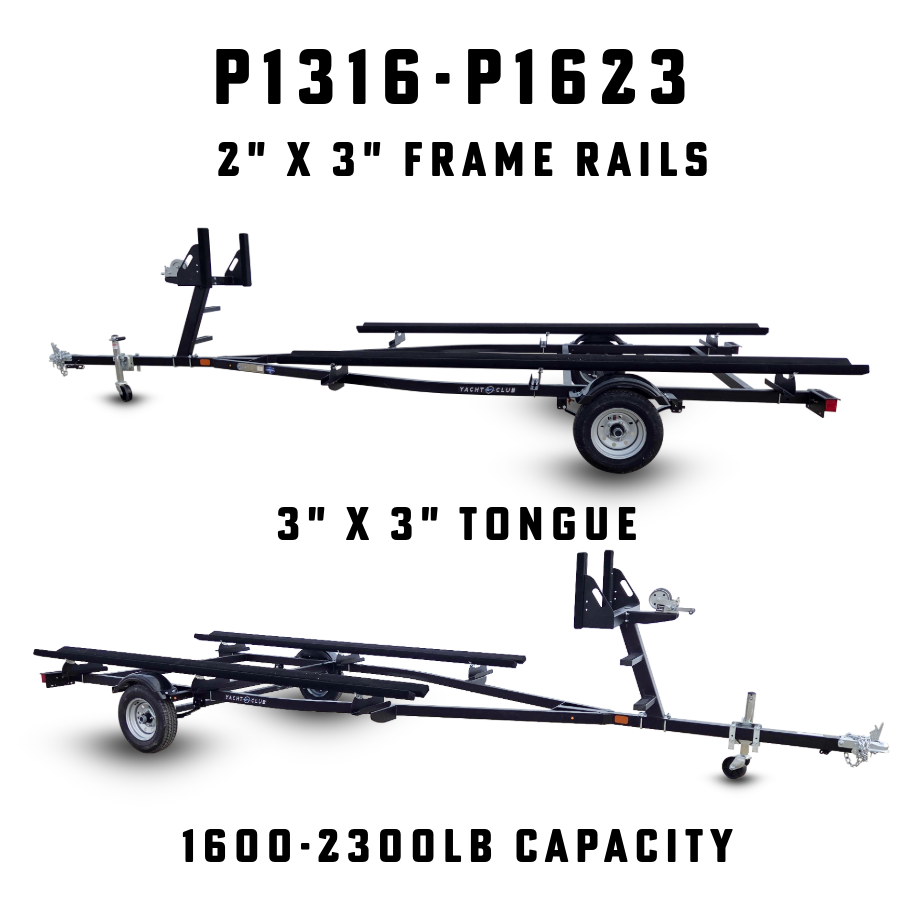

| P1316 | 1/0 | 12-14 | 17' 2" | 1600 | 550 | 6' - 8' | 5.30x12C | 🖨️ |
| P1516 | 1/0 | 14-16 | 19' 2" | 1600 | 550 | 6' - 8' | 5.30x12C | 🖨️ |
| P1623 | 1/0 | 14-16 | 21' 2" | 2300 | 600 | 6'6" - 8'6" | 145/R12E | 🖨️ |

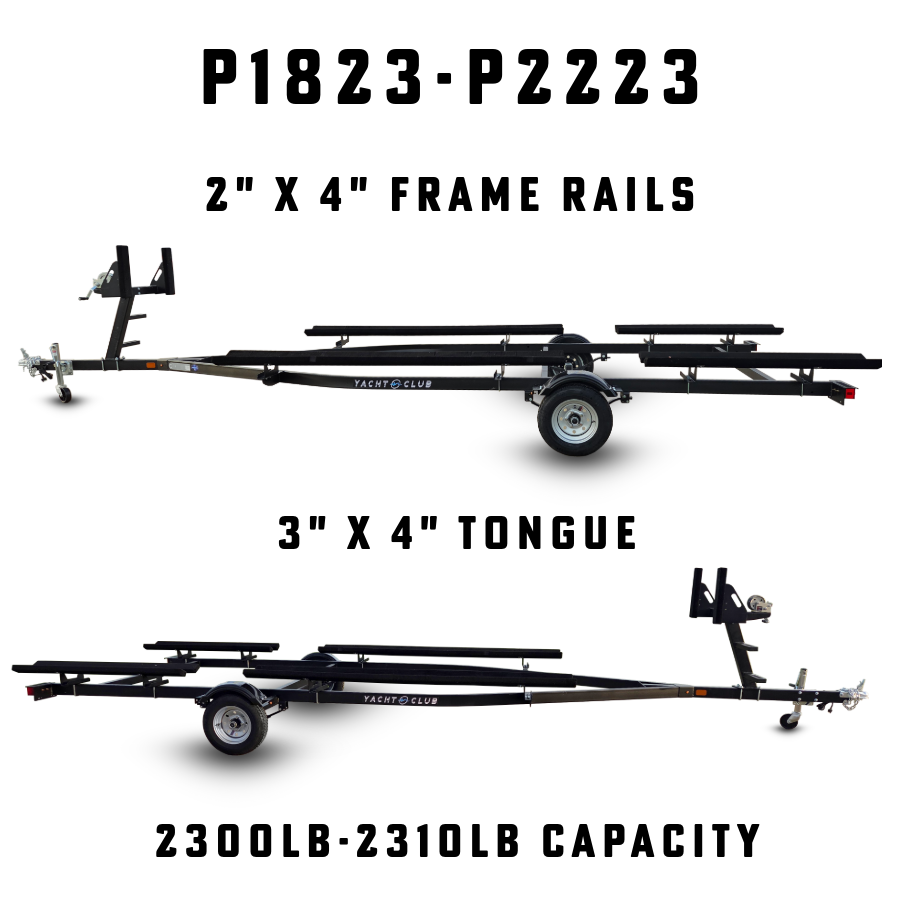

| P1823 | 1/0 | 16-18 | 23' 2" | 2300 | 630 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2023 | 1/0 | 18-20 | 25' 2" | 2310 | 690 | 8' - 8'6" | 145/R12E | 🖨️ |

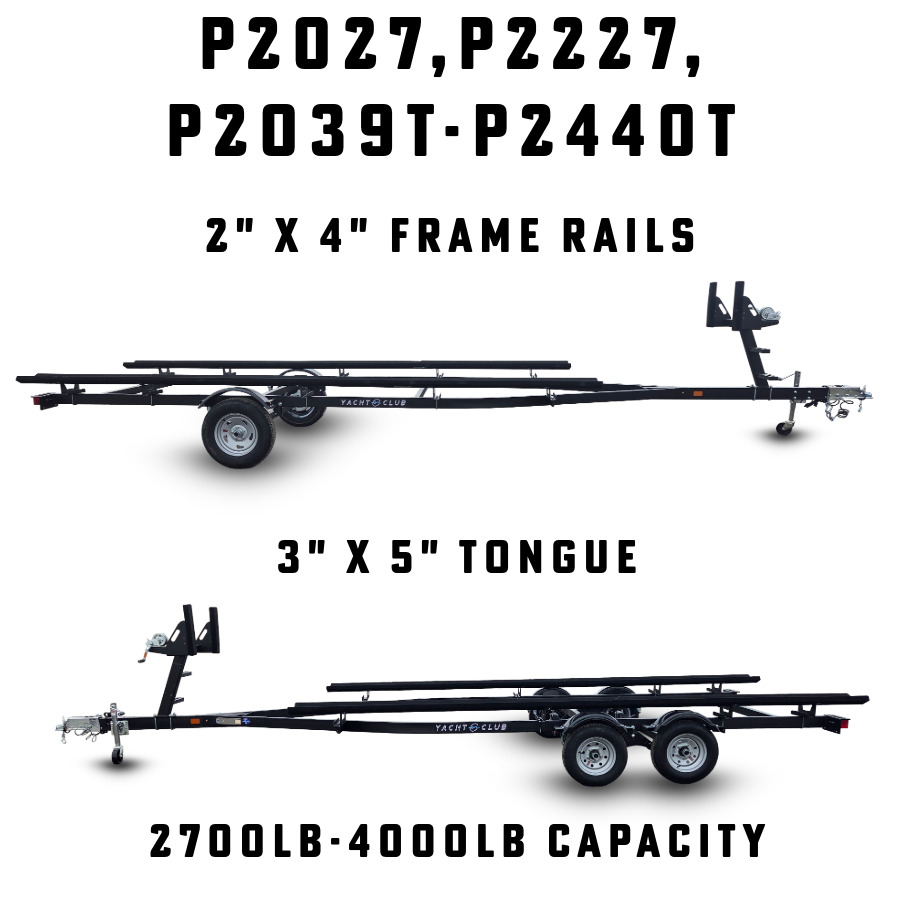

| P2027 | 1/1 | 18-20 | 25'10" | 2700 | 720 | 8' - 8'6" | 205/R15C | 🖨️ |

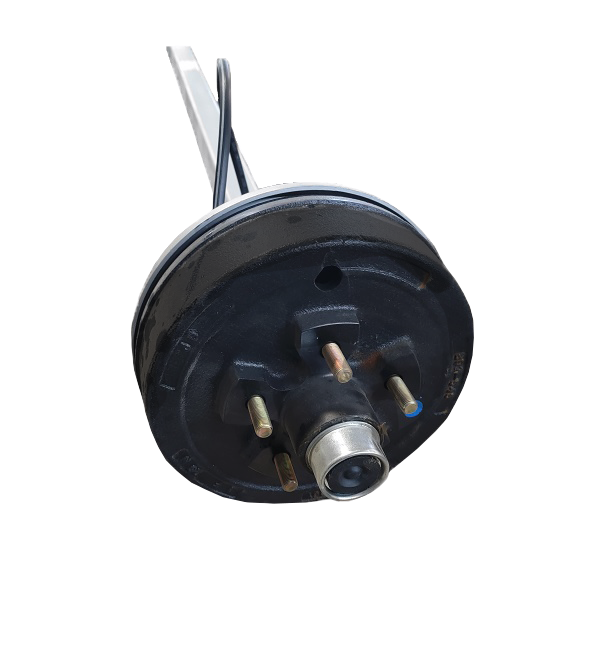

| P2039T | 2/1 drum | 18-20 | 25' 10" | 4000 | 1000 | 8' - 8'6" | 5.30x12D | 🖨️ |
| P2040T | 2/1 drum | 18-20 | 25' 10" | 4000 | 1000 | 8' - 8'6" | 145/R12E | 🖨️ |

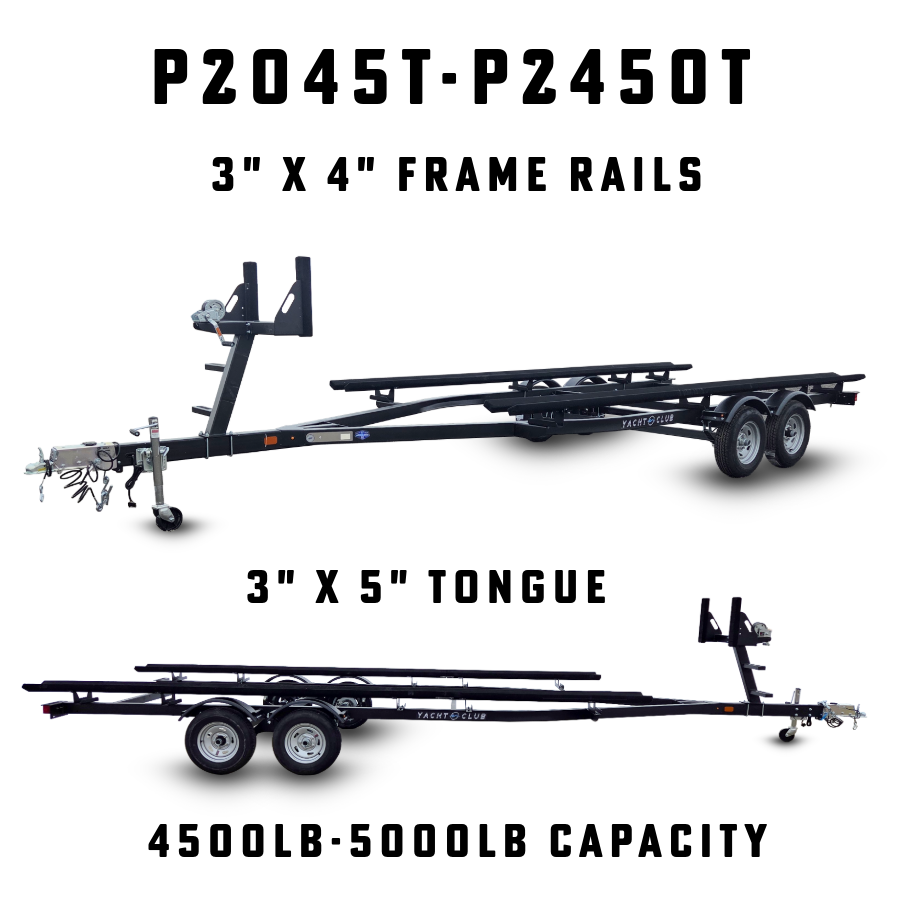

| P2045T | 2/1 | 18-20 | 25' 10" | 4500 | 1020 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2050T | 2/1 disc | 18-20 | 25' 10" | 5000 | 1020 | 8' - 8'6" | 175/R13D | 🖨️ |
| P2223 | 1/0 | 20-22 | 27' 10" | 2300 | 690 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2227 | 1/1 | 20-22 | 27' 10" | 2700 | 740 | 8' - 8'6" | 205/R15C | 🖨️ |
| P2239T | 2/1 drum | 20-22 | 27' 10" | 4000 | 1010 | 8' - 8'6" | 5.30x12D | 🖨️ |
| P2240T | 2/1 drum | 20-22 | 27' 10" | 4000 | 1010 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2245T | 2/1 | 20-22 | 27' 10" | 4500 | 1030 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2250T | 2/1 disc | 20-22 | 27' 10" | 5000 | 1030 | 8' - 8'6" | 175/R13D | 🖨️ |
| P2439T | 2/1 drum | 22-24 | 29' 10" | 4000 | 1020 | 8' - 8'6" | 5.30x12D | 🖨️ |
| P2440T | 2/1 drum | 22-24 | 29' 10" | 4000 | 1020 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2445T | 2/1 | 22-24 | 29' 10" | 4500 | 1040 | 8' - 8'6" | 145/R12E | 🖨️ |
| P2450T | 2/1 disc | 22-24 | 29' 10" | 5000 | 1040 | 8' - 8'6" | 175/R13D | 🖨️ |
* with POBK, POBK-G option
- if center tube extends beyond the deck, PDLXUP may be required
The National Association of Trailer Manufacturers is a standard carried on all of our trailers. What they focus on is making sure a trailer meets the all the necessary basic safety guidelines. This ensures proper Lighting, Reflective tape, Running gear, and Documentation. The NATM ensures that all trailers built meet the Federal Motor Safety Standards.
*All models pictured are subject to change without notice. Pictures may show trailers with added features
