To be Certified in the National Marine Manufacturers Association you must meet all the guidelines set forth by the Society of Automotive Engineers (SAE) and the Code of Federal Regulations (CFR). This Includes safety inspectuions for Brakes, Winches, Lighting, Safety Chains, Couplers, ect.. Setting a Standard to make sure your equiptment will be reliable is at the forefront of our priorities.

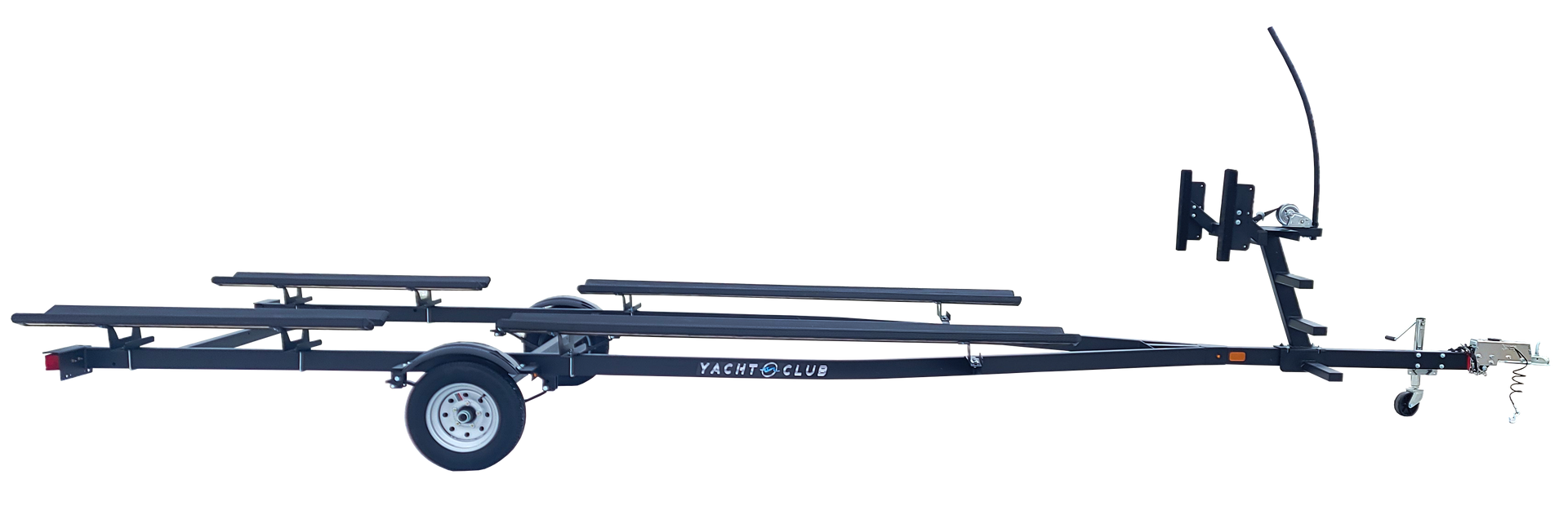

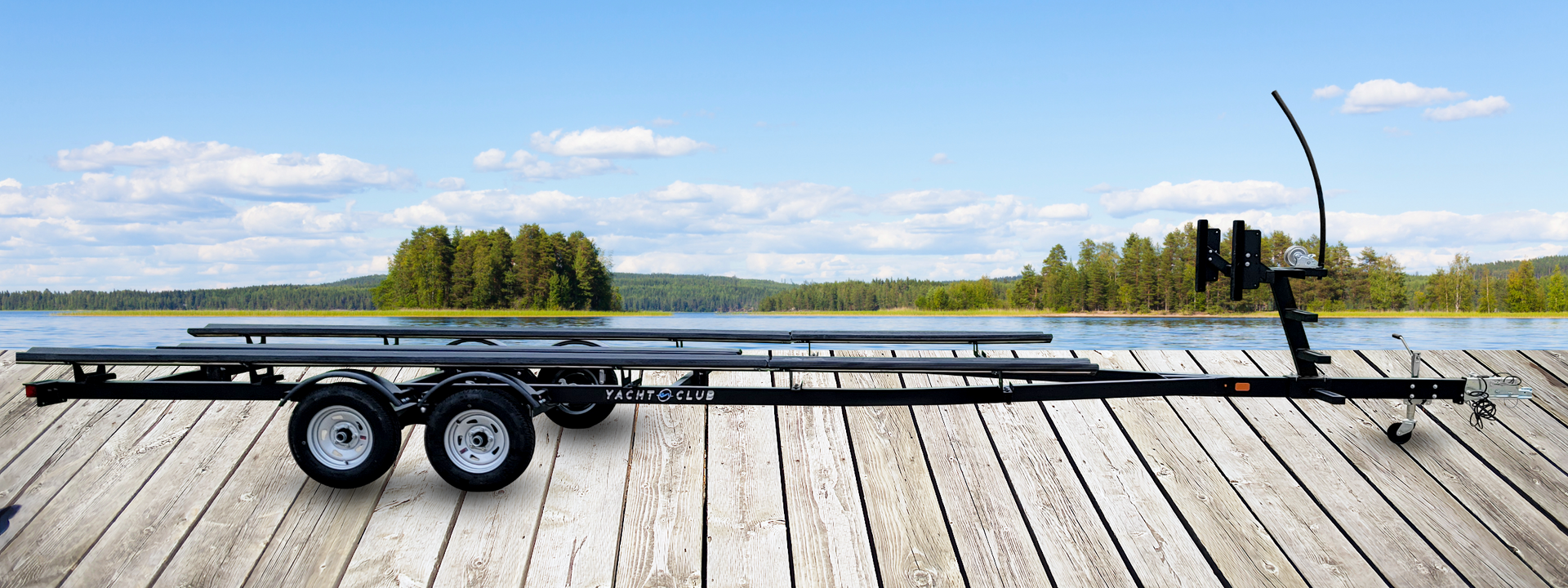

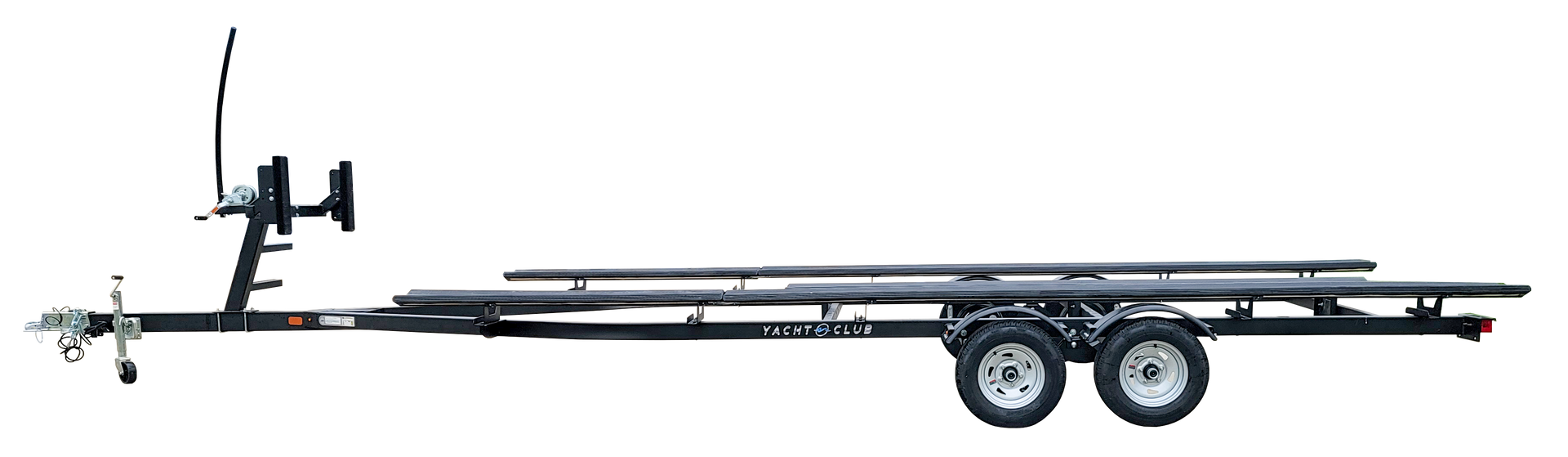

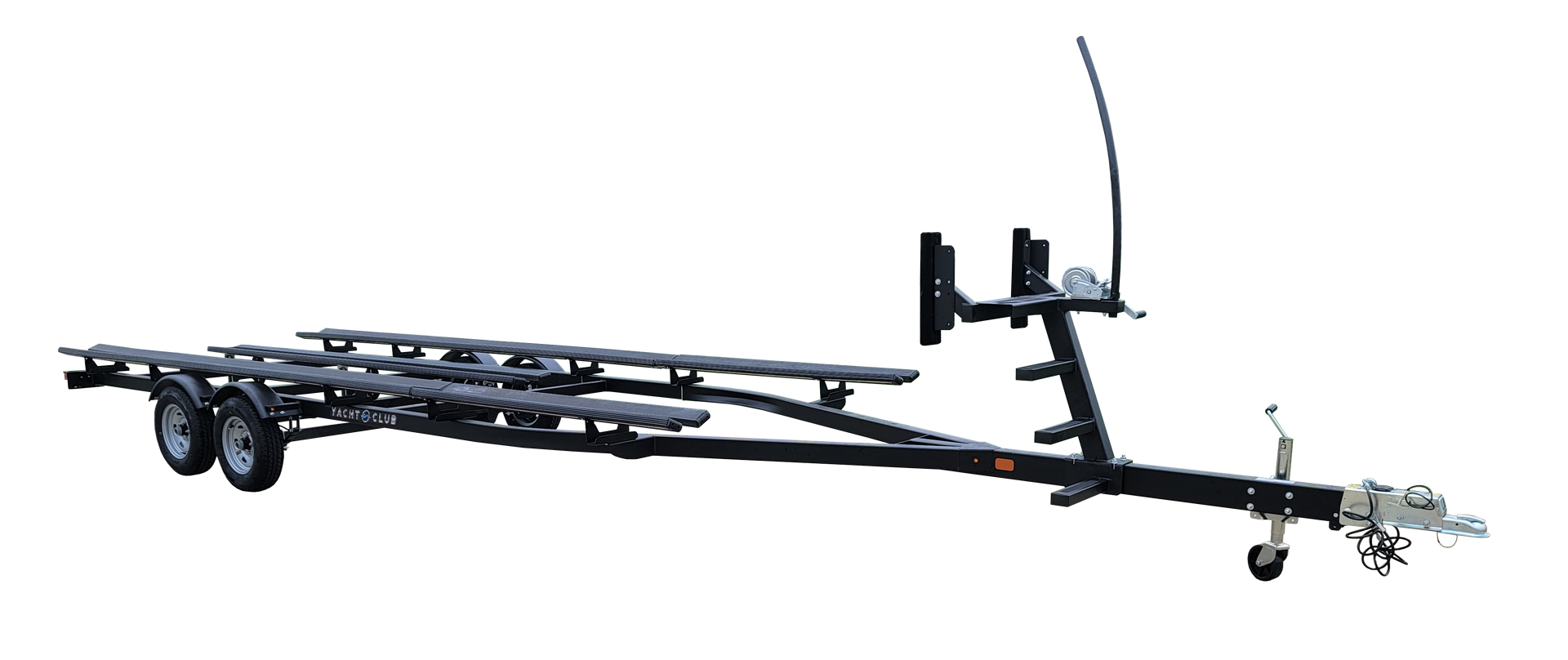

"PB" SERIES PONTOON TRAILER
Models & Specs
| Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size | Pdf Download |
|---|---|---|---|---|---|---|---|---|

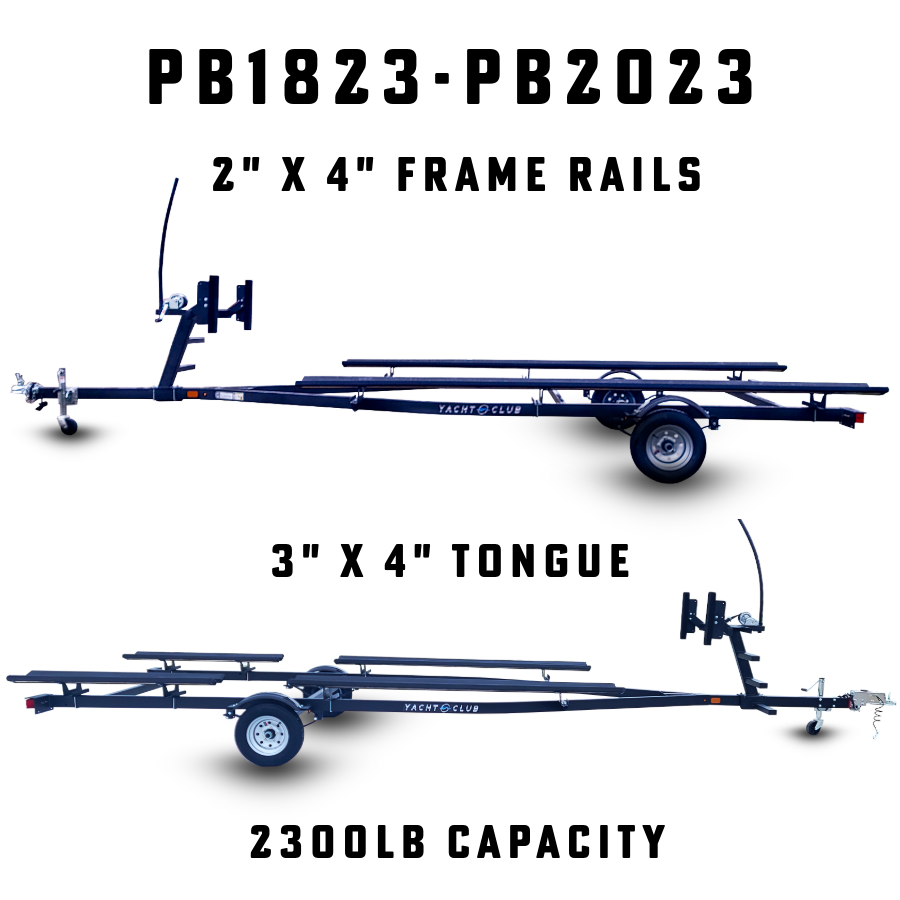

| PB1823 | 1/0 | 16-18 | 23' 2" | 2300 | 630 | 8' - 8'6" | 145/R12E rad | 🖨️ |
| PB2023 | 1/0 | 18-20 | 25' 2" | 2300 | 680 | 8' - 8'6" | 145/R12E rad | 🖨️ |

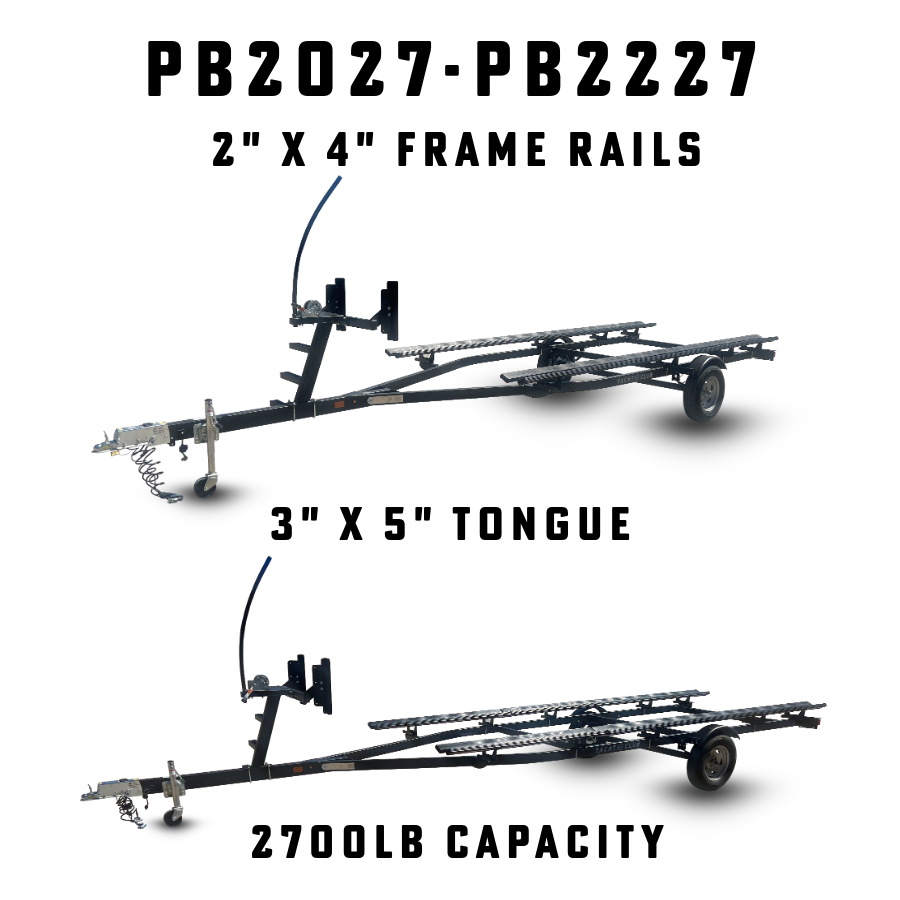

| PB2027 | 1/1 Disc | 18-20 | 25' 2" | 2700 | 720 | 8' - 8'6" | 205/R15C rad | 🖨️ |

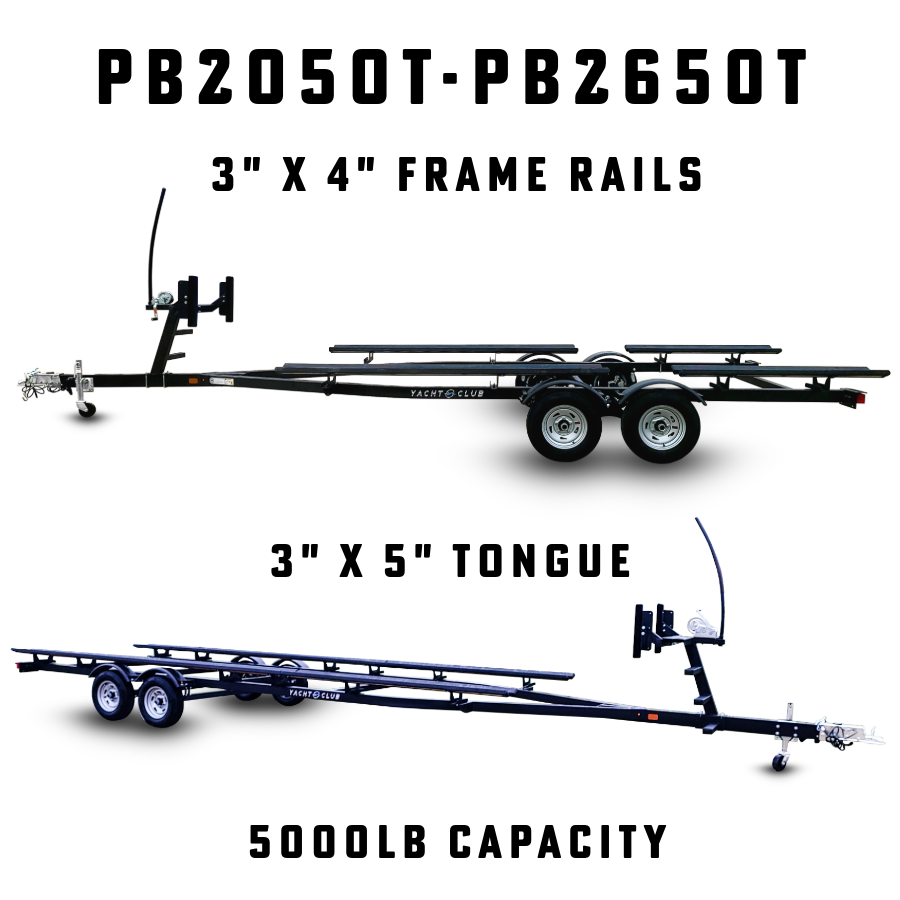

| PB2050T | 2/1 Disc | 18-20 | 25' 2" | 5000 | 1020 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2227 | 1/1 Disc | 20-22 | 27' 2" | 2700 | 740 | 8' - 8'6" | 205/R15C rad | 🖨️ |
| PB2250T | 2/1 Disc | 20-22 | 27' 2" | 5000 | 1030 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2450T | 2/1 Disc | 22-24 | 29' 10" | 5000 | 1040 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2650T | 2/1 Disc | 24-26 | 31' 10" | 5000 | 1060 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size | Pdf Download |
|---|---|---|---|---|---|---|---|---|
| PB1823 | 1/0 | 16-18 | 23' 10" | 2300 | 630 | 8' - 8'6" | 145/R12E rad | 🖨️ |
| PB2023 | 1/0 | 18-20 | 25' 2" | 2300 | 680 | 8' - 8'6" | 145/R12E rad | 🖨️ |
| PB2027 | 1/1 Disc | 18-20 | 25' 10" | 2700 | 720 | 8' - 8'6" | 205/R15C rad | 🖨️ |
| PB2050T | 2/1 Disc | 18-20 | 25' 10" | 4600 | 1020 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2227 | 1/1 Disc | 20-22 | 27' 10" | 2700 | 740 | 8' - 8'6" | 205/R15C rad | 🖨️ |
| PB2250T | 2/1 Disc | 20-22 | 27' 10" | 4600 | 1030 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2450T | 2/1 Disc | 22-24 | 29' 10" | 4600 | 1040 | 8' - 8'6" | 175/R13D rad | 🖨️ |
| PB2650T | 2/1 Disc | 24-26 | 31' 10" | 4600 | 1060 | 8' - 8'6" | 175/R13D rad | 🖨️ |
Powder Coat or Galvanized
Polyester Black Powder coat Paint is applied to the steel material using a multistep process making the metal water resistant. With its ability to withstand harsh weathering, this product is an excellent choice for applications involving fresh water.
Galvanizing Trailers are Suited for fresh or salt water applications with a highly durable corrosion resistant finish. Our Trailers are hot dipped in zinc to ensure the inside and outside of the metal are coated.

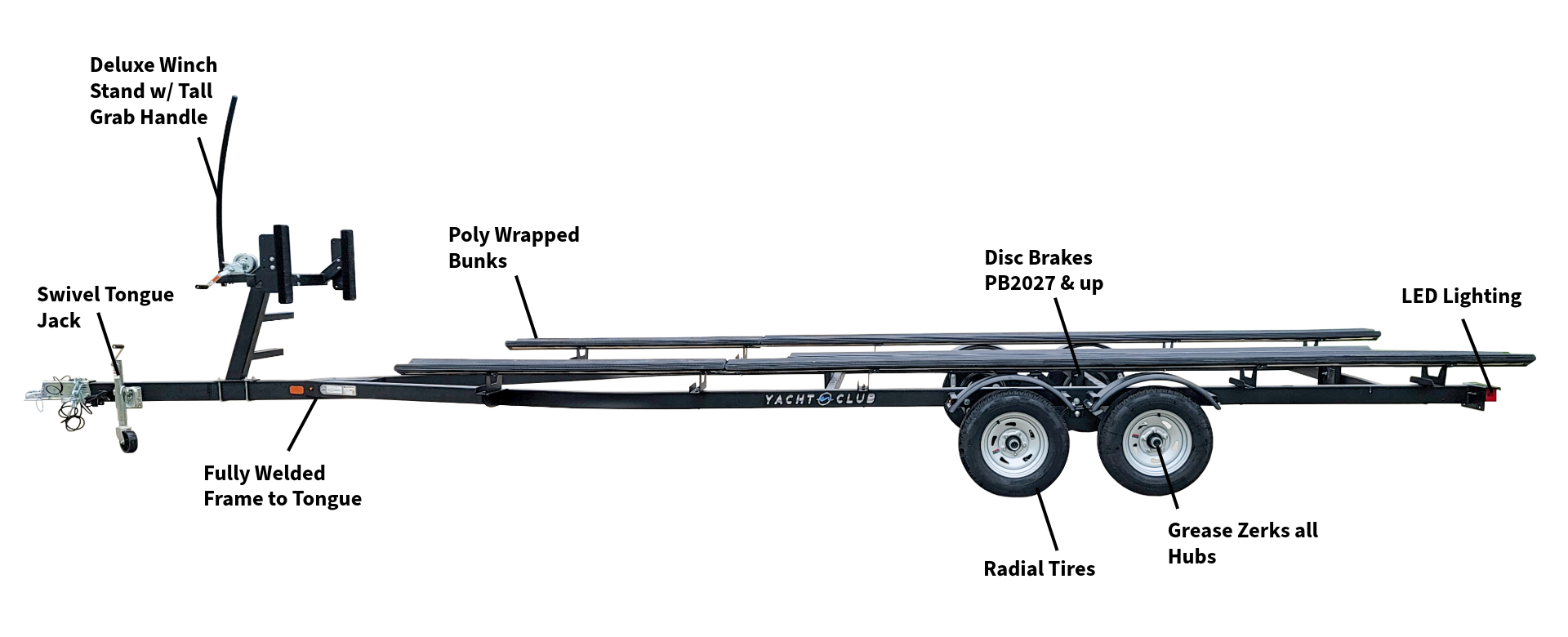

"PB" Series Standard Features
The Deluxe Pontoon Series elevates comfort and convenience with premium construction and upgraded components. Enhanced features—such as stronger frame designs, improved bunk systems, and higher-capacity winches—ensure superior stability and protection for your pontoon. LED lighting and additional safety elements come standard, giving you more confidence on the road. This series is perfect for owners who want added durability and refined towing performance.
"PB" Series Standard Features
The Deluxe Pontoon Series elevates comfort and convenience with premium construction and upgraded components. Enhanced features—such as stronger frame designs, improved bunk systems, and higher-capacity winches—ensure superior stability and protection for your pontoon. LED lighting and additional safety elements come standard, giving you more confidence on the road. This series is perfect for owners who want added durability and refined towing performance.

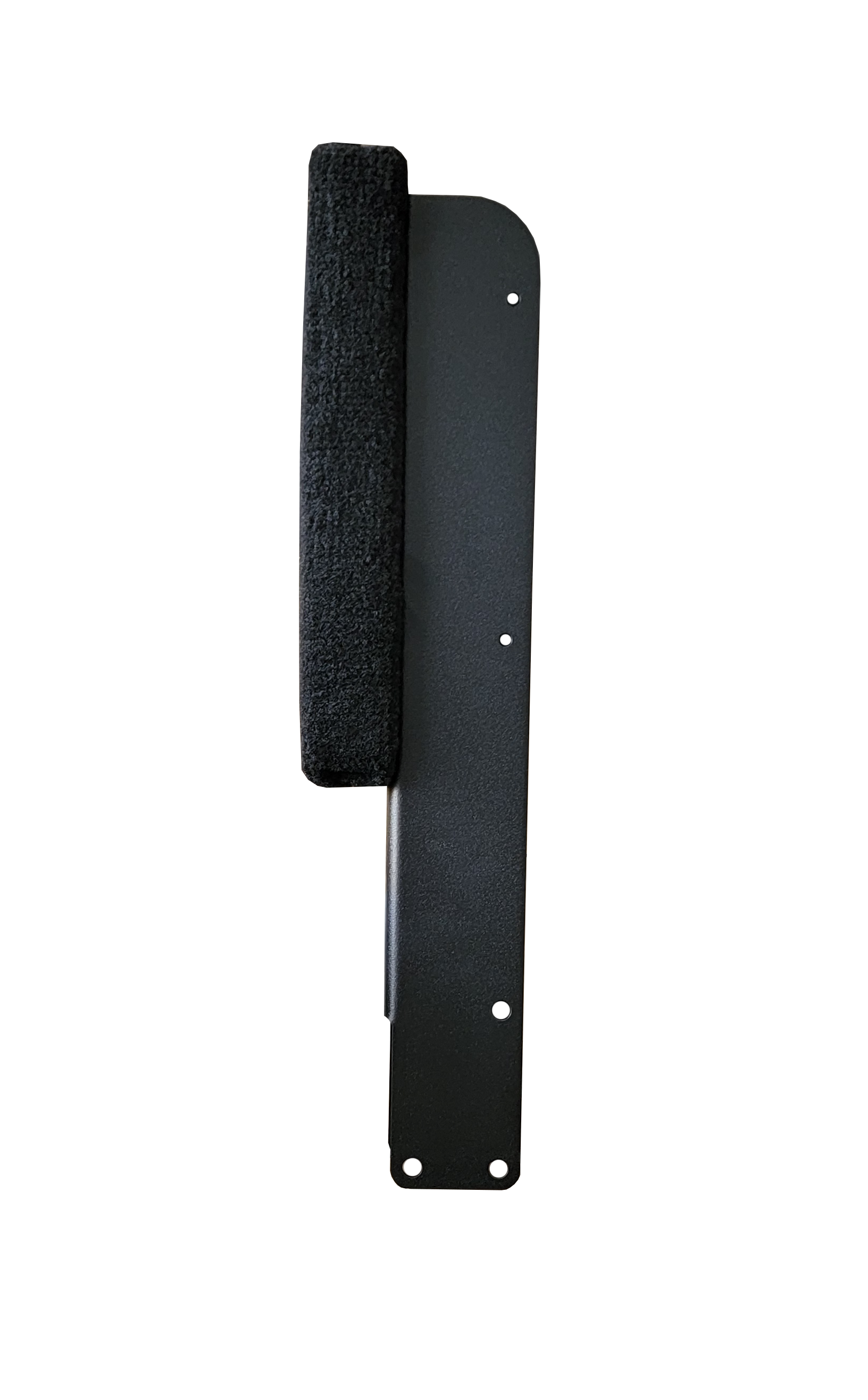

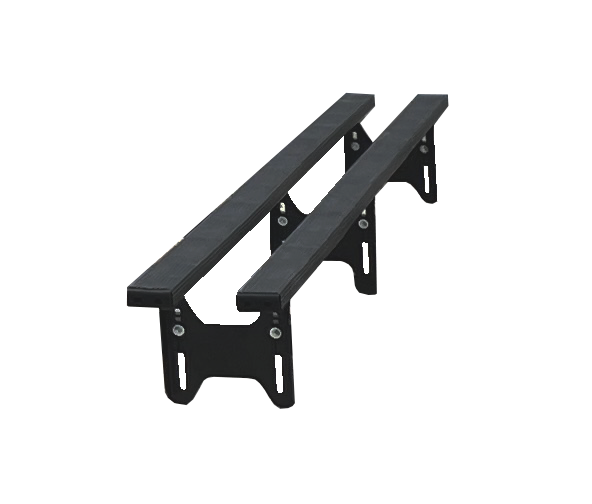

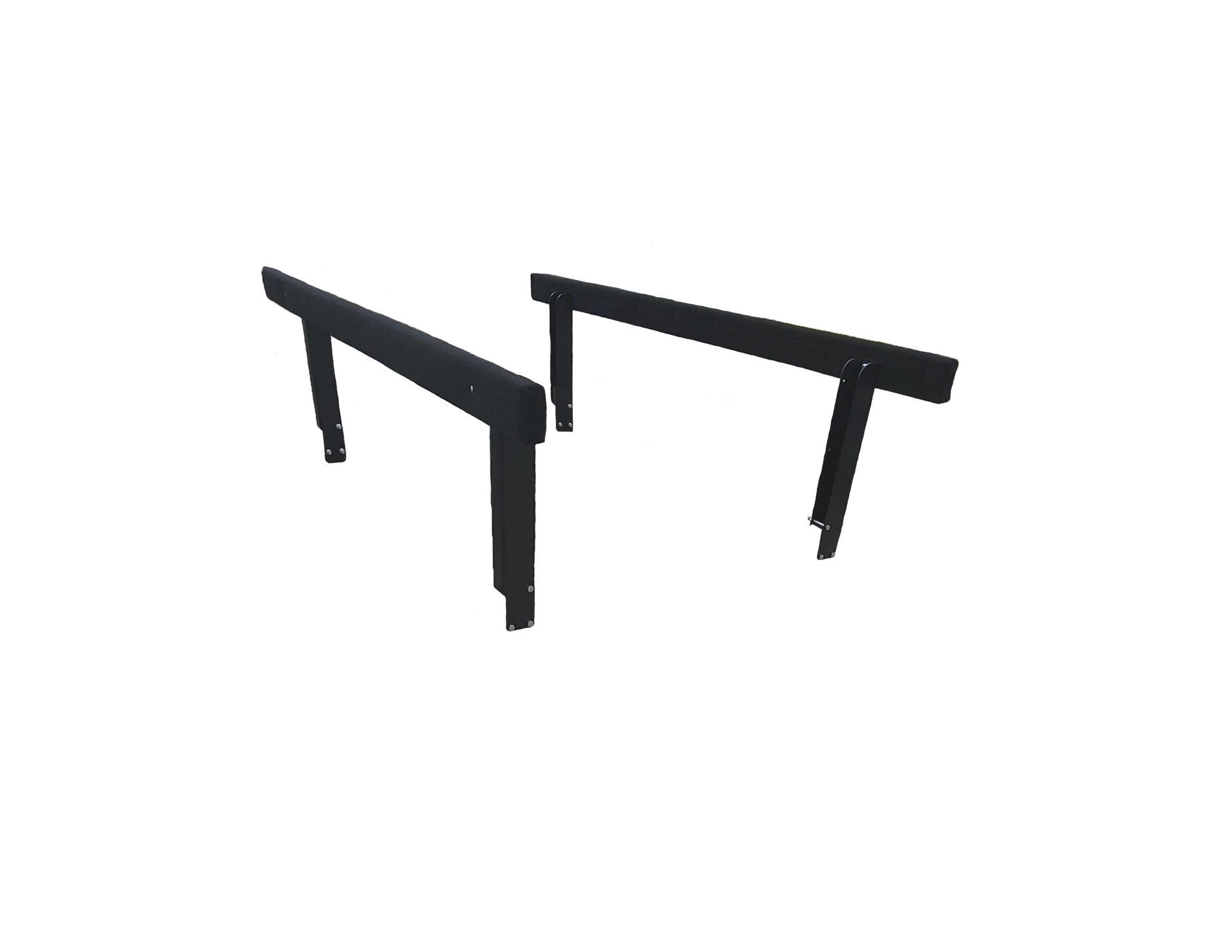

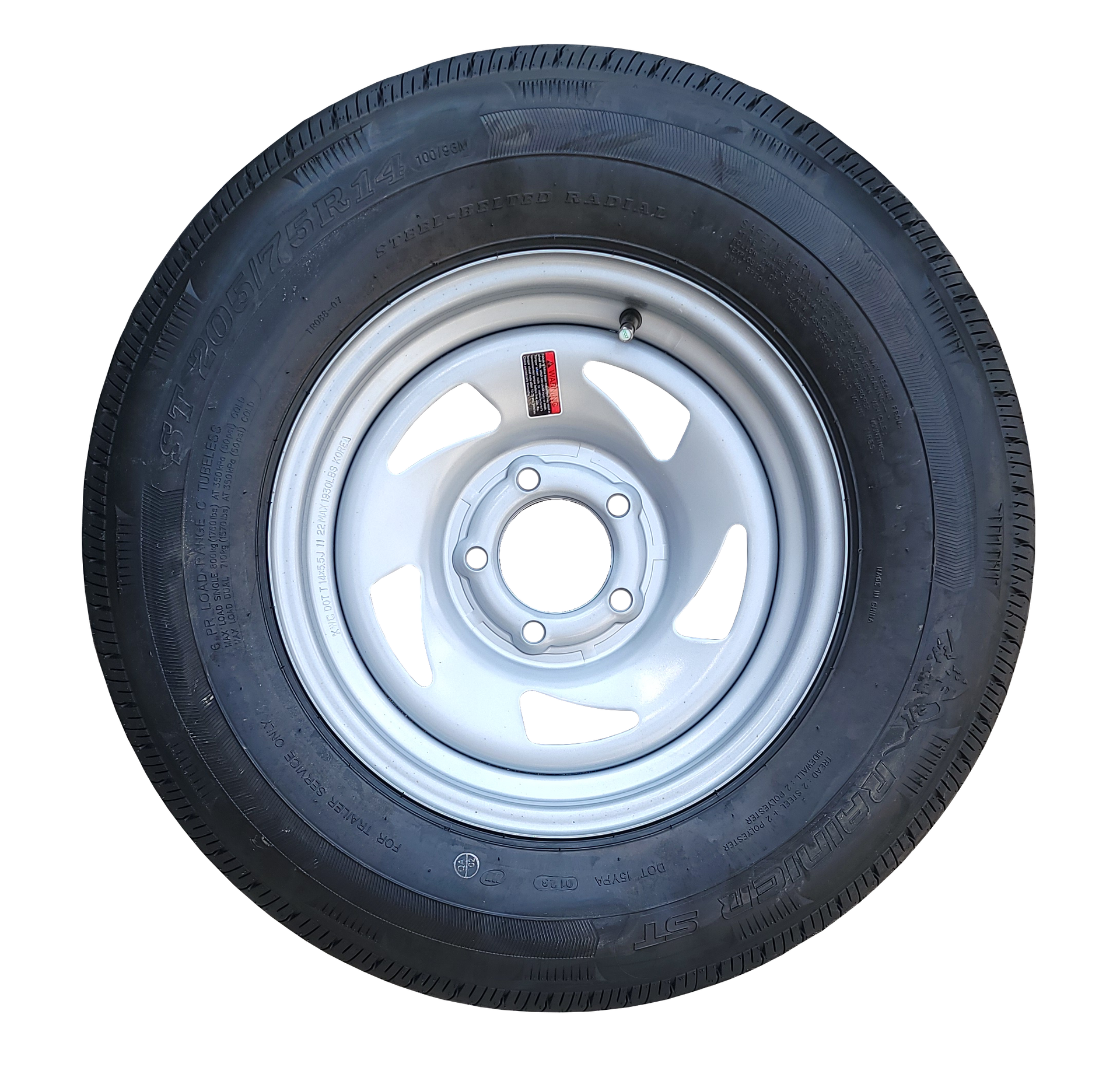

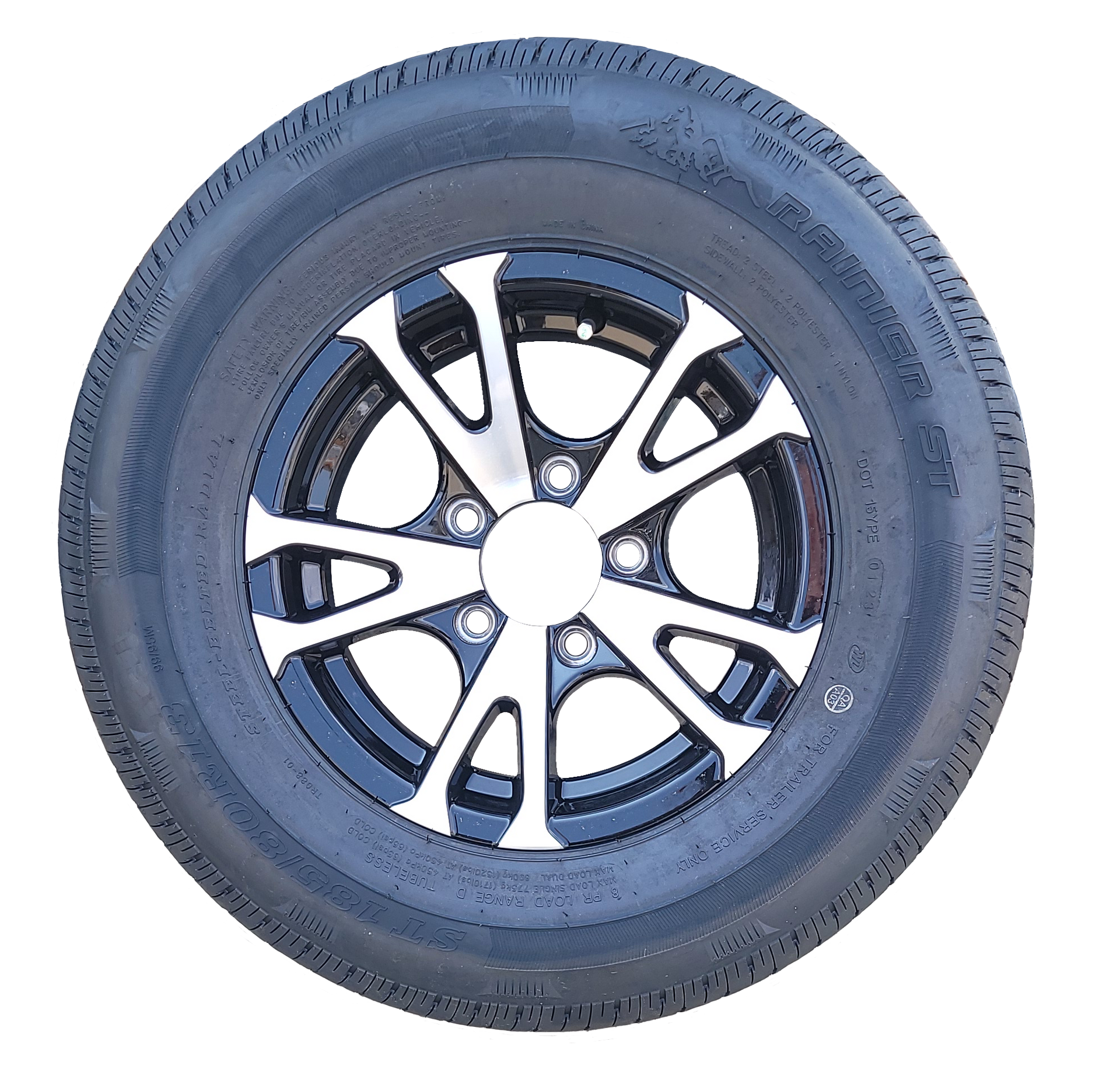

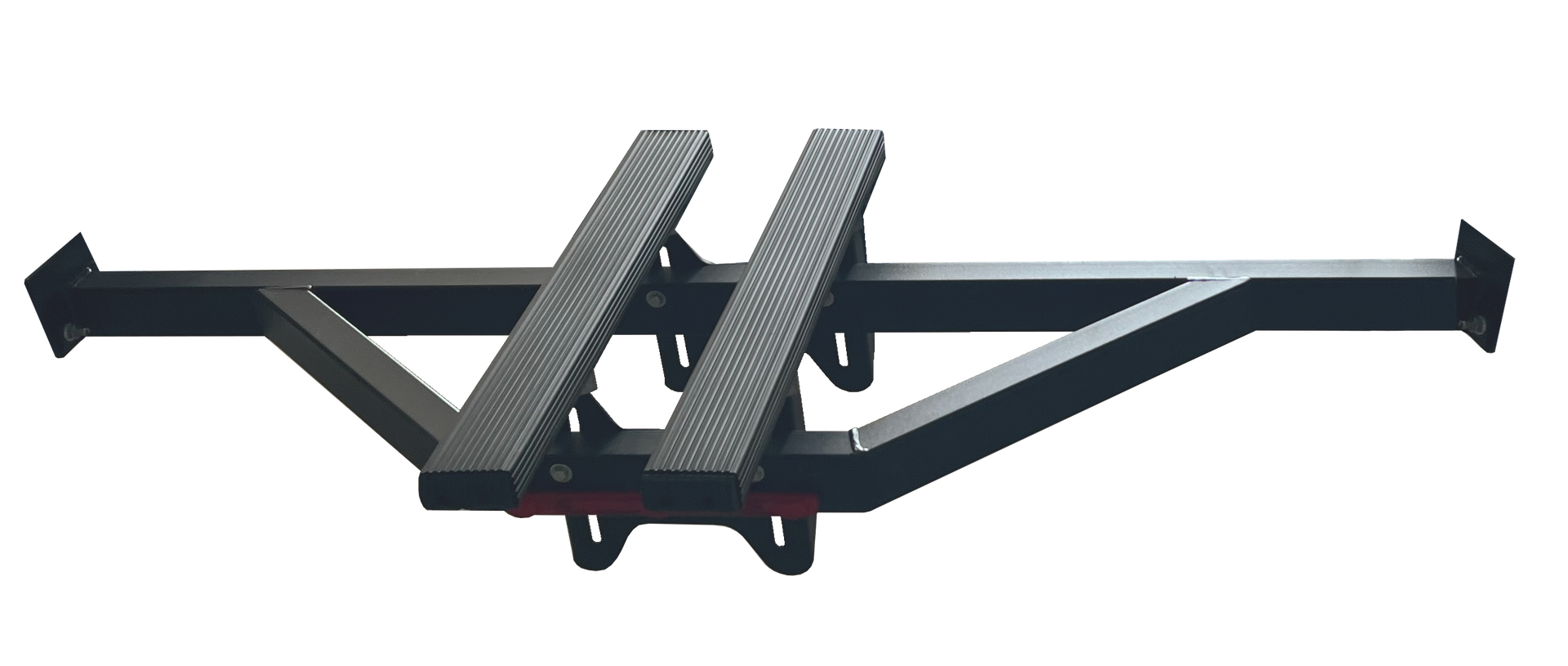

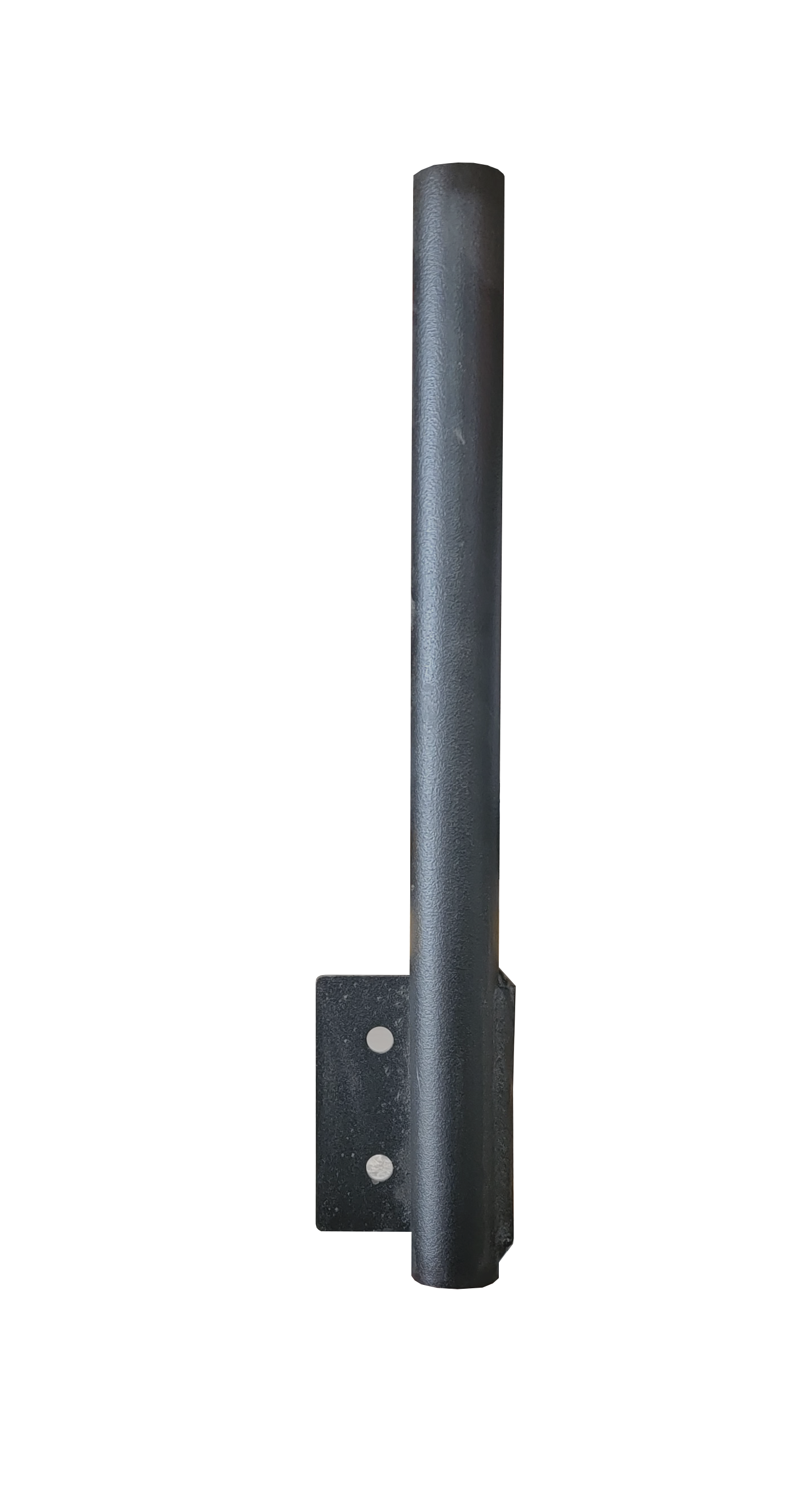

Optional Added Features
The National Association of Trailer Manufacturers is a standard carried on all of our trailers. What they focus on is making sure a trailer meets the all the necessary basic safety guidelines. This ensures proper Lighting, Reflective tape, Running gear, and Documentation. The NATM ensures that all trailers built meet the Federal Motor Safety Standards.
*All models pictured are subject to change without notice. Pictures may show trailers with added features
