Roller trailers give the ability to launch your boat in shallow or undeverloped boat ramps. Optimal for users working solo. Roller trailers can accomodate multiple boat sizes especially for frequent users that are always in and out of the water. Roller trailers do not need to be submurged completely saving wear on axles, wheels, brakes, and springs overtime.
| Model | Axles / Brakes | Boat Length | Overall Length | Carrying Capacity | Trailer Weight lbs | Between Fenders | Tire Size | PDF Download |
|---|---|---|---|---|---|---|---|---|
| R1612 | 1/0 | 14 - 16 | 18' 7" | 1185 | 375 | 51 | 4.80 x 12 B | |
| R1620 | 1/0 | 14 - 16 | 18' 3" | 2050 | 500 | 74 | ST175/80D13 C | |
| R1715 | 1/0 | 14.5 -16.5 | 19' 5" | 1500 | 450 | 64 | ST175/80D13 C | |
| R1715W | 1/0 | 14.5 -16.5 | 19' 5" | 1500 | 455 | 68 | ST175/80D13 C | 🖨️ |
| R1820 | 1/0 | 16 - 18 | 20' 4" | 2050 | 520 | 75 | ST175/80D13 C | |
| R1825 | 1/0 | 16 - 18 | 20' 3" | 2450 | 560 | 79 | ST175/80D13 D | 🖨️ |
| R1830 | 1/1 Disc | 16 - 18 | 3000 | 600 | 79 | ST215/75D14 C | 🖨️ | |
| R2052T | 2/1 Disc | 18 - 20 | 5000 | 970 | 79 | ST175/80D13 D | 🖨️ | |
| R2256T | 2/1 Disc | 20-22 | 5550 | 1050 | 79 | 185/13 D Alum/Rad | 🖨️ | |
| R2480T | 2/2 Disc | 22-24 | 8000 | 1340 | 82 | 225/75R15E |
Fully Welded Frame to Tongue
Learn More

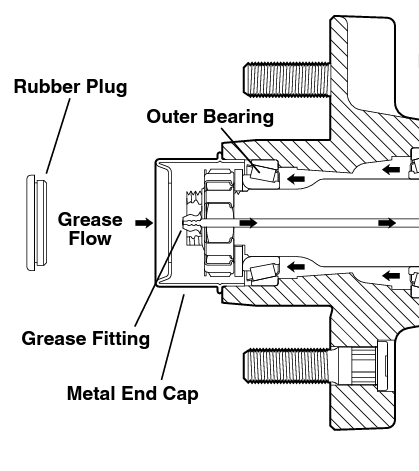

Grease Zerks All Hubs
Learn More
Polyester Texture Powder Coating
Learn More
44" PVC Style Guide-on
Photo By: John Doe
Bolt on Side Guide
Tongue Swivel Jack
Swing Away Tongue
View more
To be Certified in the National Marine Manufacturers Association you must meet all the guidelines set forth by the Society of Automotive Engineers (SAE) and the Code of Federal Regulations (CFR). This Includes safety inspectuions for Brakes, Winches, Lighting, Safety Chains, Couplers, ect.. Setting a Standard to make sure your equiptment will be reliable is at the forefront of our priorities.
The National Association of Trailer Manufacturers is a standard carried on all of our trailers. What they focus on is making sure a trailer meets the all the necessary basic safety guidelines. This ensures proper Lighting, Reflective tape, Running gear, and Documentation. The NATM ensures that all trailers built meet the Federal Motor Safety Standards.
*All models pictured are subject to change without notice. Pictures may show trailers with added features
